SAI write path and read path

Describe the SAI write path and read path.

This topic describes the write path and read path of Storage-Attached Indexing (SAI).

Introduction

SAI is deeply integrated with the storage engine of the underlying database. SAI does not abstractly index tables. Instead, SAI indexes Memtables and Sorted String Tables (SSTables) as they are written, resolving the differences between those indexes at read time.

Each Memtable is an in-memory data structure that is specific to a particular database table. A Memtable resembles a write-back cache.

Each SSTable is an immutable data file to which the database writes Memtables periodically. SSTables are stored on disk sequentially and maintained for each database table.

This topic walk through the SAI write path and the read path to examine the SAI indexing lifecycle through these in-memory and on-disk structures.

SAI write path

It may help to understand how indexed data flows through the storage engine from the point at which a mutation is written to a Memtable.

Once an SAI index is created, SAI is notified of all mutations against the current Memtable. SAI supports partition deletions, range tombstones, and row removals. SAI handles inserts and updates, which SAI treats exactly the same way. SAI also handles any delete operations in a query post-filtering step.

SAI write path overview, as described in surrounding text

As a result, SAI incurs no special penalties when indexing frequently deleted columns. If an insert or update contains valid content for the indexed column, the content is fed to a Memtable index. This structure is partitioned into sub-indexes – whose data structures differ based on content type – on Threads Per Core (TPC) boundaries. Incoming content is processed based on the token range containing the partition key for the updated row. This feature means sub-indexes are only written by a single TPC thread.

Then the primary key of the updated row is associated with the indexed value. SAI calculates an estimate of the incremental heap consumption of the new entry. This estimate counts against the heap usage of the underlying Memtable. This feature also means that as more columns are indexed on a table, the Memtable flush rate will increase, and the size of flushed SSTables will decrease. The number of total writes and the estimated heap usage of all live Memtable indexes are exposed as metrics. See SAI metrics.

Memtable flush

Once the Memtable flush threshold has been reached, SAI writes a new SSTable index for each indexed column, as the SSTable is being written. SSTable indexes are built when the flush operation occurs.

Write path flow as detailed in subsequent text

The flush operation is via a two-phase process:

  • In the first phase, rows are written to the new SSTable. For each one, a row ID is generated and three index components are created. The components are:
    1. On-disk mappings of row IDs to their corresponding token values – SAI supports the Murmur3Partitioner
    2. SSTable partition offsets
    3. A temporary mapping of primary keys to their row IDs, which is used in a subsequent phase
    Note: The contents of the first and second component files are compressed arrays whose ordinals correspond to row IDs.
  • In the second phase, after all rows are written to the new SSTable and the shared SSTable-level index components have been completed, SAI begins its indexing work on each indexed column.
    Important: Unlike its predecessor (SASI), SAI flushes Memtable index contents directly to disk, rather than creating an additional in-memory representation. This is possible because Memtable indexes are sorted by term/value and then by primary key.

Specifically in the second phase, SAI iterates over the Memtable index to produce pairs of terms and their token-sorted row IDs. This iterator translates primary keys to row IDs using the temporary mapping structure built in the first phase. The terms iterator (with postings) is then passed to separate writing components based on whether each indexed element is for a string or numeric column.

In the string case, the SAI index writer iterates over each term, first writing its postings to disk, and then recording the offset of those postings in the postings file as the payload of a new entry (for the term itself) in an on-disk, byte-ordered trie.

In the numeric case, SAI separates the writing of a numeric index into two steps:

  1. The terms are passed to a balanced kd-tree writer, which writes the kd-tree to disk. As the leaf blocks of the tree are written, their postings are recorded temporarily in memory.
  2. Those temporary postings are then used to build postings on-disk, at the leaves, and at various levels of the index nodes.

When a column index flush completes, a special empty marker file is flagged to indicate success. This procedure is used on startup and incremental rebuild operations to differentiate case where:

  1. SSTable index files are missing for a column
  2. There is no indexable data – such as when an SSTable only contains tombstones. (A tombstone is a marker in a row that indicates a column was deleted. During compaction, marked columns are deleted.)
SAI then increments a counter on the number of Memtable indexes flushed for the column, and adds to a histogram the number of cells flushed per second.

When compaction is triggered

First, brief background about a feature called compaction. Compaction works on a collection of SSTables. From these SSTables, compaction collects all versions of each unique row and assembles one complete row, using the most up-to-date version (by timestamp) of each of the row's columns. The merge process is performant, because rows are sorted by partition key within each SSTable, and the merge process does not use random I/O. The new versions of each row is written to a new SSTable. The old versions, along with any rows that are ready for deletion, are left in the old SSTables, and are deleted when any pending reads are completed.

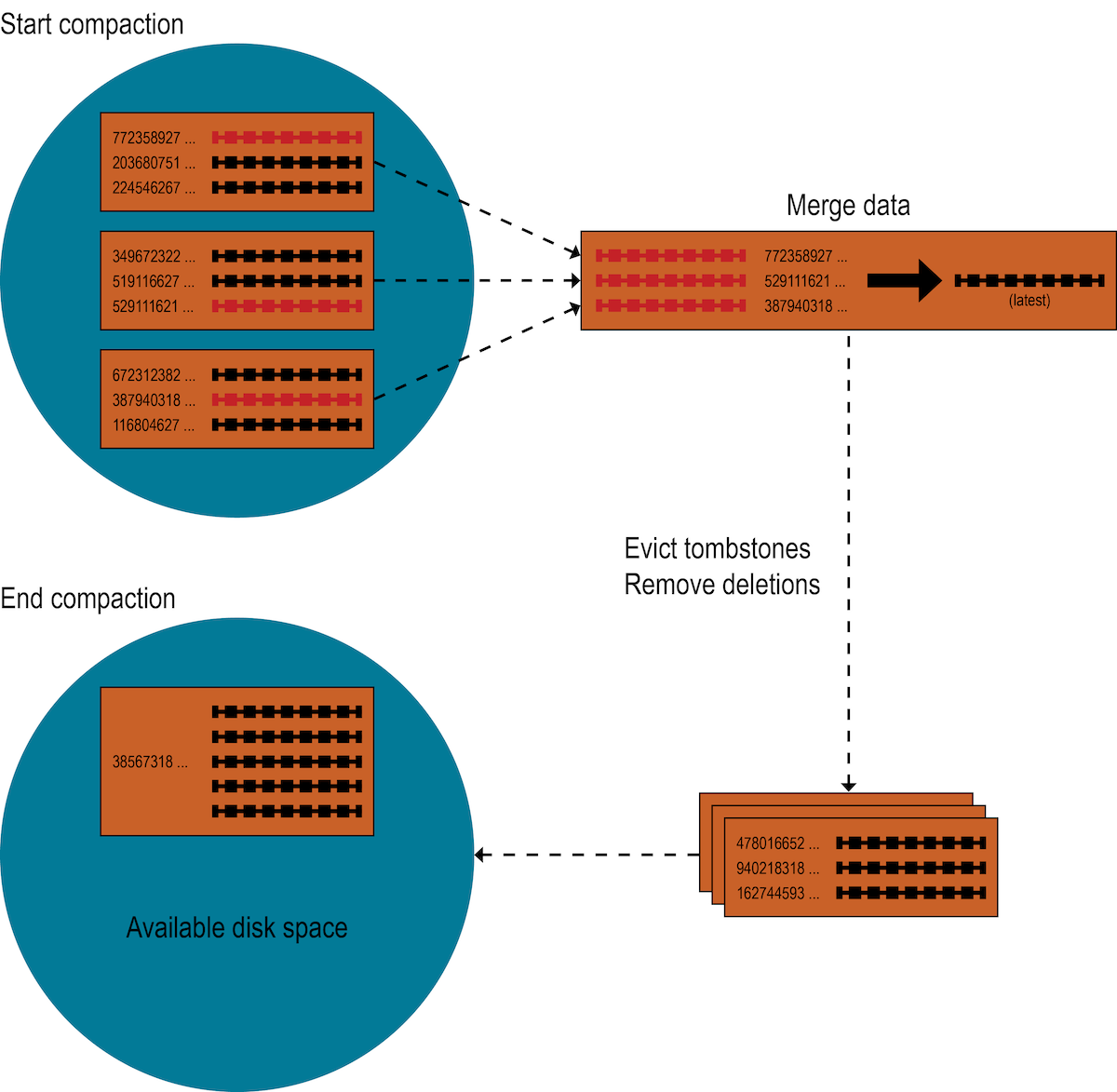

Figure 1. How compaction works

See How is data maintained?.

For SAI, when compaction is triggered, each index group creates an SSTable Flush Observer to coordinate the process of writing all attached column indexes from the newly compacted data in their respective SSTable writer instances.

Unlike Memtable flush (where indexed terms are already sorted), when iterating merged data during compaction, SAI buffers indexed values and their row ids, which are added in token order. To avoid issues such as exhausting available heap resources, SAI uses an accumulated segment buffer, which is flushed to disk synchronously by using a proprietary calculation. Then each segment records a segment row ID offset and only stores the segment row ID (SSTable row ID minus segment row ID offset).
Tip: Unlike SASI, which stitches individual asynchronously flushed segments at the end of compaction, SAI flushes segments into the same file synchronously to avoid the cost of rewriting all segments and to reduce the cost of partition-restricted queries and paging range queries, as it reduces the search space.

The on-disk layout from the per-column indexed posting, to the SSTable offset, to the SSTable partition:

SAI on-disk layout as described in surrounding text

The actual segment flushing process is very similar to Memtable flush. However, buffered terms are sorted before they can be written with their postings to their respective type-specific on-disk structures. At the end of compaction for a given index, a special empty marker file is flagged to indicate success, and the number of segments is recorded in SAI metrics. See Global indexing metrics.

When the entire compaction task finishes, SAI receives an SSTable List Changed Notification that contains the SSTables added and removed during the transaction. SSTable Context Manager and Index View Manager are responsible for replacing old SSTable indexes with new ones atomically. At this point, new SSTable indexes are available for queries.

SAI read path

This section explains how index queries are processed by the SAI coordinator and executed by replicas. Unlike legacy secondary indexes, where at most one column index will be used per query, SAI implements a Query Plan that makes it possible to use all available column indexes in a single query.

Let's illustrate the overall flow:

SAI read path as described in subsequent sections

Index selection and Coordinator processing

When presented with a query, the first action the SAI Coordinator performs, to take advantage of one or more indexes, is to identify the most selective index. That is, the index that will most aggressively narrow the filtering space and the number of ultimate results. Specifically, the most selective index is the one that returns the lowest value from an estimated results row calculation. If multiple SAI indexes are present (that is, where each SAI index is based on a different column, but the query involved more than one column), it does not matter which SAI index is selected first.

Once the best index for the read operation is selected, the index is embedded with the read command, which enters the distributed range read apparatus. A distributed range read queries the ring in one or more rounds in token order. The SAI Coordinator estimates the number of rows per range based on local data and the query limit to determine the number of ranges to contact. That is, to estimate the concurrency factor. For each round, a concurrency factor determines how many replicas will be queried in parallel.

Before the first round commences, SAI estimates the initial concurrency factor via a proprietary calculation, shown here as Step 1.

SAI step to estimate a concurrency factor as described in surrounding text

Once the initial concurrency factor established, the range read begins.

SAI iterates through the ranges as described in surrounding text

  • 2. SAI Coordinator sends requests to the required ranges in parallel based on the Concurrency factor.
  • 3. SAI Coordinator waits for the responses from the requested replicas.
  • 4. SAI Coordinator collects the results and recomputes the concurrency factor based on returned rows and query limit.

At the completion of each round, if the limit has not been reached, the concurrency factor is adjusted to take into account the shape of the results already read. If no results are returned from the first round, the concurrency factor is immediately increased to the minimum calculation of remaining token ranges and the maximum calculation of the concurrency factor. If results are returned, the concurrency factor is updated. SAI repeats steps 2, 3, and 4 until the query limit is satisfied.

SAI repeats the steps until the limit is satisfied as described in surrounding text

To avoid querying replicas with failed indexes, each node propagates its own local index status to peers via gossip. At the coordinator, read requests will filter replicas that contain non-queryable indexes used in the request. In most cases, the second round of replica queries should return all the necessary results. Further rounds may be necessary if the distribution of results around the replicas is extremely imbalanced.

A closer look: replica query planning and view acquisition

Once a replica receives a token range read request from the SAI Coordinator, the local index query begins. SAI implements an index searcher interface via a Query Plan that makes it possible to access all available SAI column indexes in a single query.

The Query Plan performs an analysis of the expressions passed to it via the read command. SAI determines which indexes should be used to satisfy the query clauses on the given columns. Once column expressions are paired with indexes, a view of the active SSTable indexes for each column index is acquired by a Query Controller. In order to avoid compaction removing index files used by in-flight queries, before reading any index files, the Query Controller tries to acquire references to the SSTables for index files that intersect with the query’s token range, and releases them when the read request completes.

At this point, a Token Flow is created to stream matches from each column index. Those flows, along with the Boolean logic that determines how they are merged, is wrapped up in an Operation, which is returned to the Query Plan component.

Role of the SAI Token Flow framework

The SAI query engine revolves around a Token Flow framework that defines how SAI asynchronously iterates over, skips into, and merges streams of matching partitions from both individual SSTable indexes and entire column indexes. As was the case for SASI, SAI uses a token to describe a container for partition matches within a Cassandra ring token.

Iteration is the simplest of the three operations. Specifically, the iteration of postings involves sequential disk access – via the chunk cache – to row IDs, which are used to lookup ring token and partition key offset information.

Token skipping is used to skip unmatched tokens when continuing from the previous paging boundary, or when a larger token is found during token intersection.

Match streaming and post filtering example

Consider an example with an individual column index (such as age = 44), the flow produced is the union of all Memtable indexes and all SSTable indexes.
  • SAI iterates over each Memtable index "lazily" (that is, one at a time) in token order through its individual token range-partitioned instances. This feature reduces the overhead that would occur otherwise from unnecessary searches of data toward the end of the ring.
  • On-disk index: SAI returns the union of all matching SSTable index. Within one SSTable index, there can be multiple segments because of the memory limit during compaction. Similar to the Memtable index, SAI lazily searches segments in token sorted order.
When there are multiple indexed expressions in the query (such as WHERE age=44 AND state='CA') connected with AND query operator, the results of indexed expressions are intersected, which returns partition keys that match all indexed expressions.

SAI intersection of age and state columns

After the index search, SAI exposes a flow of partition keys. For every single partition key, SAI executes a single partition read operation, which returns the rows in the given partition. As rows are materialized, SAI uses a filter tree to apply another round of filtering. SAI performs this subsequent filtering step to address the following:
  • Partition granularity: SAI keeps track of partition offsets. In the case of a wide partition schema, not all rows in the partition will match the index expressions.
  • Tombstones: SAI does not index tombstones. It’s possible that an indexed row has been shadowed by newly added tombstones.
  • Non-indexed expressions: Operations may include non-index expressions for which there are no index structures.

What's next?

See the DataStax blog, Better Cassandra Indexes for a Better Data Model: Introducing Storage-Attached Indexing.
