Introduction to Zero Downtime Migration

Enterprises today depend on the ability to reliably migrate mission-critical client applications and data to cloud environments with zero downtime during the migration.

At DataStax, we’ve developed a set of thoroughly-tested self-service tools, automation scripts, examples, and documented procedures that walk you through well-defined migration phases.

We call this product suite DataStax Zero Downtime Migration (ZDM).

ZDM provides a simple and reliable way for you to migrate applications from any CQL-based cluster (Apache Cassandra®, DSE, Astra DB, or any type of CQL-based database) to any other CQL-based cluster, without any interruption of service to the client applications and data.

You can move your application to Astra DB, DSE, or Cassandra with no downtime and with minimal configuration changes. For more, see migration workflow.
Your clusters will be kept in sync at all times by a dual-write logic configuration.
You can rollback at any point, for complete peace of mind.

This suite of tools allows for zero downtime migration only if your database meets the minimum requirements. If your database does not meet these requirements, you can complete the migration from Origin to Target, but downtime might be necessary to finish the migration.

The Zero Downtime Migration process requires you to be able to perform rolling restarts of your client applications during the migration.

This is standard practice for client applications that are deployed over multiple instances and is a widely used approach to roll out releases and configuration changes.

Migration scenarios

Here are just a few examples of migration scenarios that are supported when moving from one type of CQL-based database to another:

From an existing self-managed Cassandra or DSE cluster to cloud-native Astra DB. For example:
- Cassandra 2.1.x, 3.11.x or 4.0.x to Astra DB
- DSE 4.8.x, 5.1.x or 6.8.x to Astra DB
From an existing Cassandra or DSE cluster to another Cassandra or DSE cluster. For example:
- Cassandra 2.1.x or 3.11.x to 4.0.x
- DSE 4.8.x or 5.1.x to DSE 6.8.x
- Cassandra 2.1.x, 3.11.x or 4.0.x to DSE 6.8.x
- DSE 4.8.x to Cassandra 4.0.x
From Astra DB Classic to Astra DB Serverless

Migration phases

First, a couple of key terms used throughout the Zero Downtime Migration documentation and software components:

Origin: This cluster is your existing Cassandra-based environment, whether it’s open-source Apache Cassandra, DSE, or Astra DB Classic.
Target: This cluster is the new environment to which you want to migrate client applications and data with zero downtime.

For additional terms, see the glossary.

Your migration project can occur through a sequence of phases, with zero downtime, as illustrated in this high-level view.

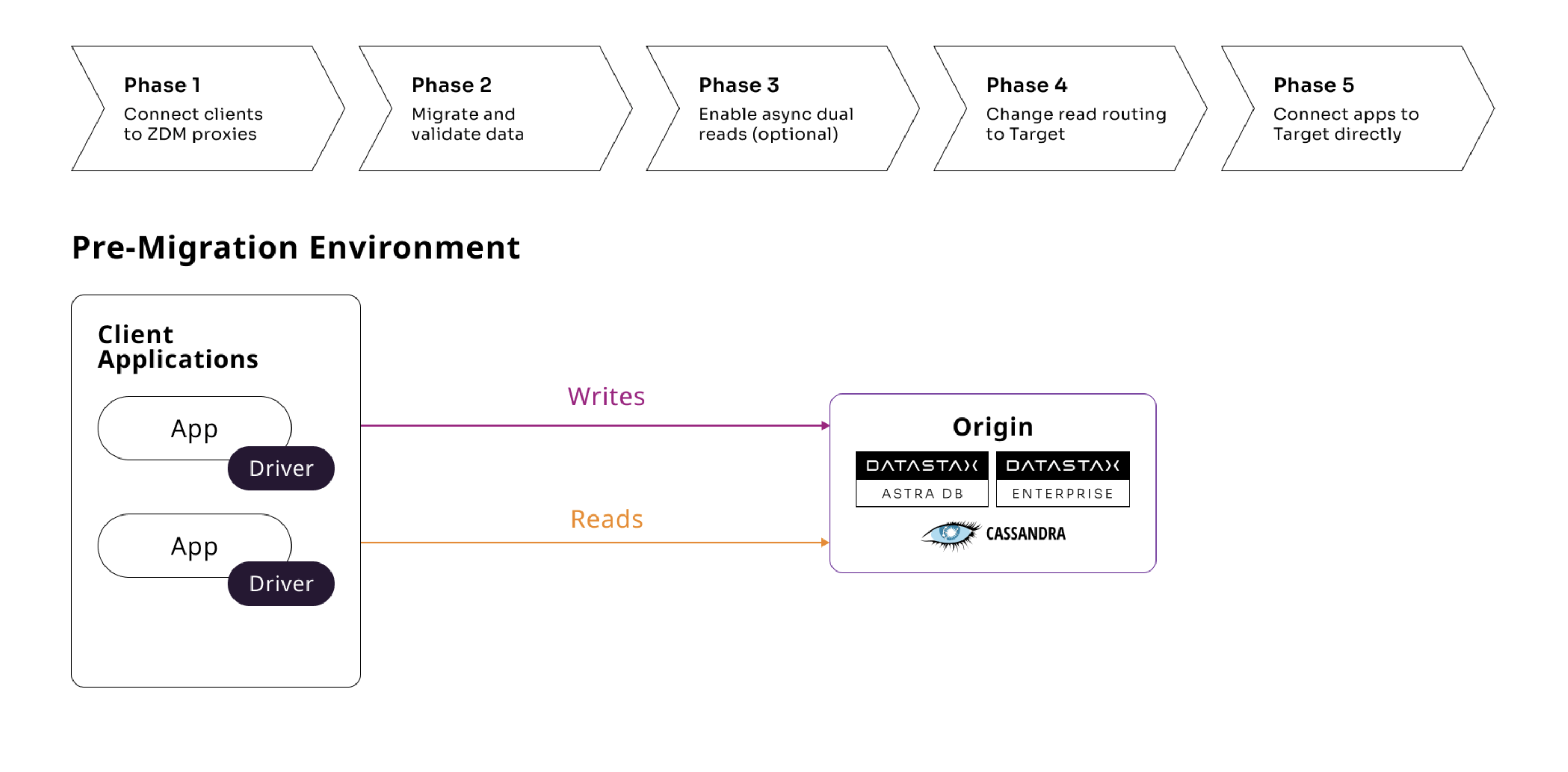

Before your migration begins, you’ll need to satisfy prerequisites, prepare your environment, and set up the recommended infrastructure. Then, start in Phase 1 and progress through each phase in sequence:

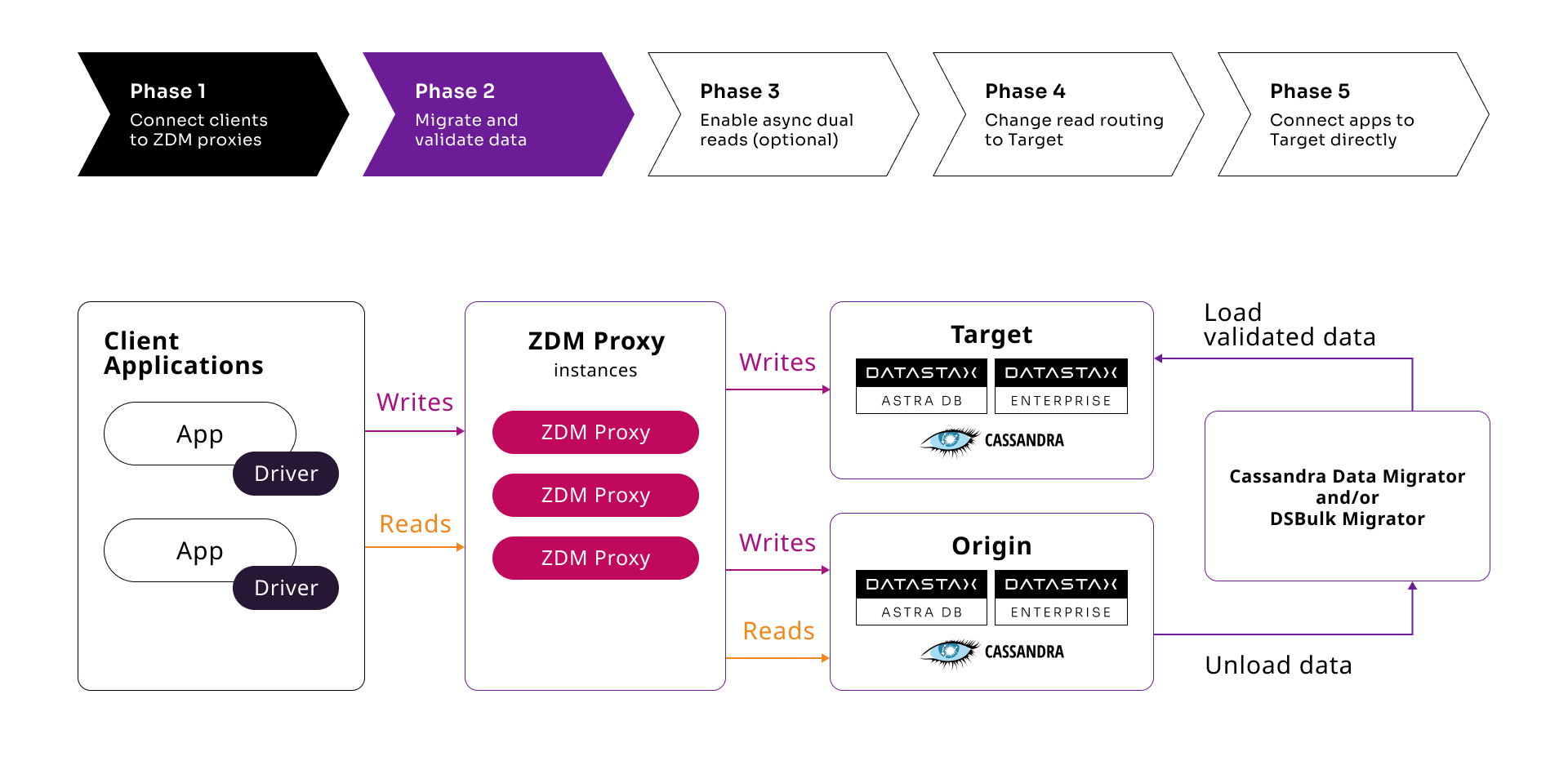

Migration phases from start to finish

Phase 1: Connect your client applications to the ZDM Proxy. This activates the dual-write logic: writes will be "bifurcated" (sent both to Origin and Target), while reads will be executed on Origin only.
Phase 2: Migrate existing data using Cassandra Data Migrator and/or DSBulk Migrator. Validate that the migrated data is correct, while continuing to perform dual writes.
Phase 3: Enable asynchronous dual reads (optional).
Phase 4: Change the proxy configuration to route reads to Target, effectively using Target as the source-of-truth while still keeping Origin in sync.
Phase 5: Move your client applications off the ZDM Proxy and connect them directly to Target.

Migration workflow

Here’s a diagram to illustrate the overall migration strategy when moving client applications and data from Origin to Target.

Migration workflow from client application to ZDM Proxy with dual writes to Origin and Target

With no changes required to your client application code itself, ZDM Proxy does the work to route writes to Origin and Target.
Cassandra Data Migrator and/or DSBulk Migrator can migrate data between clusters of any supported types. See the next section for an introduction to these tools.
Initially during the migration, ZDM Proxy always reads from Origin.
Once all the data has been imported into Target, you can run any validation and/or reconciliation on it. You can also optionally enable asynchronous reads to be sent to Target to try out the performance and validate that it can handle your application live request load before cutting over.
At this point, the read routing on the ZDM Proxy is switched to Target so that all reads are executed on it, while writes are still sent to both clusters. In other words, Target becomes the primary cluster.
Finally, the client application can be moved off the proxy and connected directly to Target, at which point the migration is complete.

DataStax Zero Downtime Migration components

The main component of the DataStax Zero Downtime Migration product suite is ZDM Proxy, which by design is a simple and lightweight proxy that handles all the real-time requests generated by your client applications. ZDM Proxy is open-source software (OSS) and available in its Public GitHub repo, https://github.com/datastax/zdm-proxy. You can view the source files and contribute code for potential inclusion via Pull Requests (PRs) initiated on a fork of the repo.

The ZDM Proxy itself doesn’t have any capability to migrate data or knowledge that a migration may be ongoing, and it is not coupled to the migration process in any way.

DataStax Zero Downtime Migration also provides the ZDM Utility and ZDM Automation to set up and run the Ansible playbooks that deploy and manage the ZDM Proxy and its monitoring stack.
Two data migration tools are available — Cassandra Data Migrator and DSBulk Migrator — to migrate your data. See the summary of features below.

Role of ZDM Proxy

We created ZDM Proxy to function between the application and both databases (Origin and Target). The databases can be any CQL-compatible data store (e.g. Apache Cassandra, DataStax Enterprise and Astra DB). The proxy always sends every write operation (Insert, Update, Delete) synchronously to both clusters at the desired Consistency Level:

If the write is successful in both clusters, it returns a successful acknowledgement to the client application
If the write fails on either cluster, the failure is passed back to the client application so that it can retry it as appropriate, based on its own retry policy.

This design ensures that new data is always written to both clusters, and that any failure on either cluster is always made visible to the client application. ZDM Proxy also sends all reads to the primary cluster (initially Origin, and later Target) and returns the result to the client application.

ZDM Proxy is designed to be highly available. It can be scaled horizontally, so typical deployments are made up of a minimum of 3 servers. ZDM Proxy can be restarted in a rolling fashion, for example, to change configuration for different phases of the migration.

ZDM Proxy has been designed to run in a clustered fashion so that it is never a single point of failure. Unless it is for a demo or local testing environment, a ZDM Proxy deployment should always comprise multiple ZDM Proxy instances.

We will often use the term ZDM Proxy to indicate the whole deployment, and ZDM Proxy instance to refer to an individual proxy process in the deployment.

Key features of ZDM Proxy

Allows you to lift-and-shift existing application code from Origin to Target with a simple change of a connection string.
Reduces risks to upgrades and migrations by decoupling Origin from Target, and allowing there to be an explicit cut-over point once you’re satisfied with Target.
Bifurcates writes synchronously to both clusters during the migration process.
Returns (for read operations) the response from the primary cluster, which is its designated source of truth. During a migration, Origin is typically the primary cluster. Near the end of the migration, you’ll shift the primary cluster to be Target.
Can be configured to also read asynchronously from Target. This capability is called Asynchronous Dual Reads (also known as Read Mirroring) and allows you to observe what read latencies and throughput Target can achieve under the actual production load.
- Results from the asynchronous reads executed on Target are not sent back to the client application.
- This design implies that failure on asynchronous reads from Target does not cause an error on the client application.
- Asynchronous dual reads can be enabled and disabled dynamically with a rolling restart of the ZDM Proxy instances.

When using Asynchronous Dual Reads, any additional read load on Target may impact its ability to keep up with writes. This behavior is expected and desired. The idea is to mimic the full read and write load on Target so there are no surprises during the last migration phase; that is, after cutting over completely to Target.

ZDM Utility and ZDM Automation

Ansible is a suite of software tools that enables infrastructure as code. It is open source and its capabilities include software provisioning, configuration management, and application deployment functionality.

The Ansible automation for ZDM is organized into playbooks, each implementing a specific operation. The machine from which the playbooks are run is known as the Ansible Control Host. In ZDM, the Ansible Control Host will run as a Docker container.

You will use the ZDM Utility to set up Ansible in a Docker container, and ZDM Automation to run the Ansible playbooks from the Docker container created by ZDM Utility. In other words,the ZDM Utility creates the Docker container acting as the Ansible Control Host, from which the ZDM Automation allows you to deploy and manage the ZDM Proxy instances and the associated monitoring stack - Prometheus metrics and Grafana visualization of the metric data.

ZDM Utility and ZDM Automation expect that you have already provisioned the recommended infrastructure, as outlined in Deployment and infrastructure considerations.

The source for both of these tools are in a public repo.

For details, see:

Data migration tools

As part of the overall migration process, you can use Cassandra Data Migrator and/or DSBulk Migrator to migrate your data.

Cassandra Data Migrator

Use Cassandra Data Migrator to:

Migrate your data from any CQL-supported Origin to any CQL-supported Target. Examples of databases that support CQL are Apache Cassandra, DataStax Enterprise and Astra DB.
Validate migration accuracy and performance using examples that provide a smaller, randomized data set
Preserve internal writetime timestamps and Time To Live (TTL) values
Take advantage of advanced data types (Sets, Lists, Maps, UDTs)
Filter records from the Origin data, using Cassandra’s internal writetime timestamp
Use SSL Support, including custom cipher algorithms

Cassandra Data Migrator is designed to:

Connect to and compare your Target database with Origin
Report differences in a detailed log file
Optionally reconcile any missing records and fix any data inconsistencies in Target, if you enable autocorrect in a config file

An important prerequisite is that you already have the matching schema on Target.

DSBulk Migrator

You can also take advantage of DSBulk Migrator to migrate smaller sets of data.

For more about both tools, see Migrate and validate data.
