DSE Search architecture

In a distributed environment, the data is spread over multiple nodes. Deploy DSE Search nodes in their own datacenter to run DSE Search on all nodes.

Data is written to the database first, and then indexes are updated next.

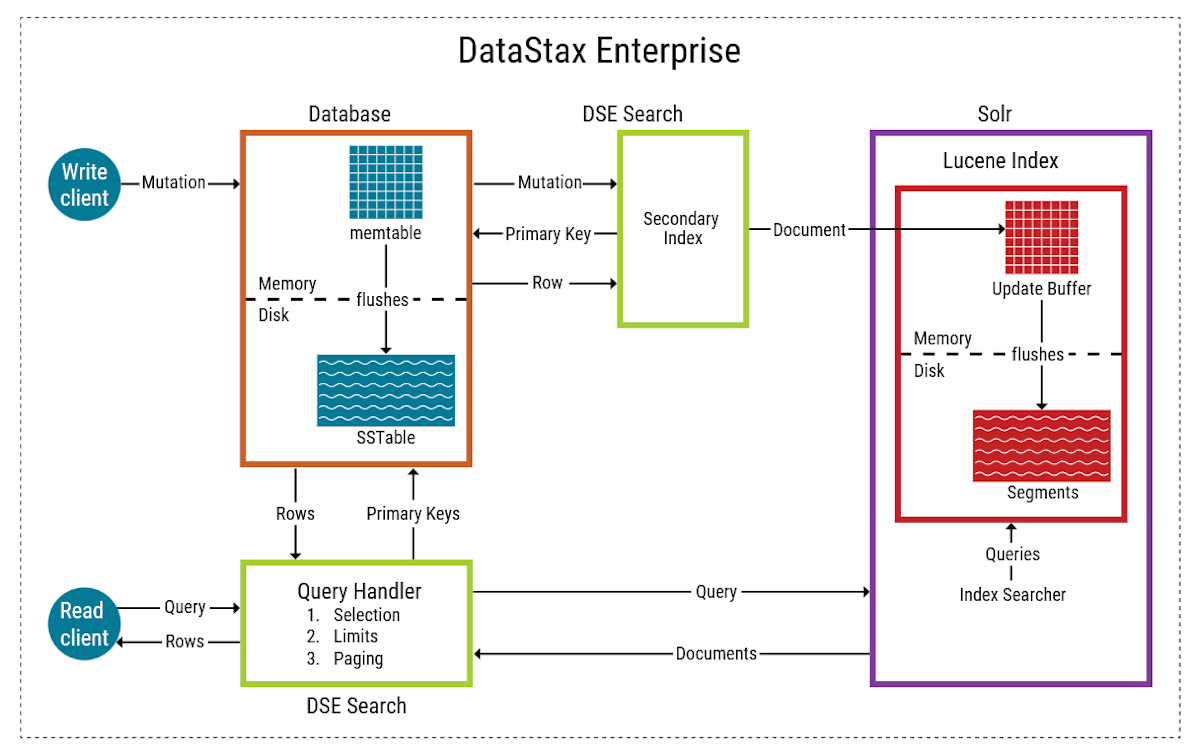

Search update
Search update
  • The Search commitlog is used only when the solr core is not available, such as when the node is starting up or when the Solr core is being built.

  • Indexing workers pull items off the indexing queue, use the PK to read a row from Cassandra, create a Solr document, and then push it into the ram buffer ready for Lucene. Index workers also flush Lucene documents into on-disk segments.

  • Indexing queue parallelism is set by Solr concurrency per core.

  • Any commit flushes the whole RAM buffer.

  • Part of the Lucene flushing is delete processing. Duplicate doc ids in each segment need to be marked to ensure only one live document is present. The number of segments affects read speed and indexing (write) speed.

When you update a table using CQL, the search index is updated. Indexing occurs automatically after an update. Writes are durable. All writes to a replica node are recorded in memory and in a commit log before they are acknowledged as a success. If a crash or server failure occurs before the memory tables are flushed to disk, the commit log is replayed on restart to recover any lost writes.

DSE Search terms

In DSE Search, there are several names for an index of documents on a single node:

  • A search index (formerly referred to as a search core)

  • A collection

  • One shard of a collection

See the following table for a mapping between database and DSE Search concepts.

DSE Search terms
Database Search single node environment


Search index (core) or collection



Primary key

Unique key









How DSE Search works

  • Each document in a search index is unique and contains a set of fields that adhere to a user-defined schema.

  • The schema lists the field types and defines how they should be indexed.

  • DSE Search maps search indexes to tables.

  • Each table has a separate search index on a particular node.

  • Solr documents are mapped to rows, and document fields to columns.

  • A shard is indexed data for a subset of the data on the local node.

  • The keyspace is a prefix for the name of the search index and has no counterpart in Solr.

  • The search request is routed to enough nodes to cover all token ranges.

    • The query is sent to all token ranges to get all possible results.

    • The search engine considers the token ranges that each node is responsible for, taking into account the replication factor (RF), and computes the minimum number of nodes that is required to query all ranges.

  • On DSE Search nodes, the shard selection algorithm for distributed queries uses a series of criteria to route sub-queries to the nodes most capable of handling them. The shard routing is token aware, but is not limited unless the search query specifies a specific token range.

  • With replication, a node or search index contains more than one partition (shard) of table (collection) data. Unless the replication factor equals the number of cluster nodes, the node or search index contains only a portion of the data of the table or collection.
